In mission-critical electrical engineering, specifying the wrong cable for harsh or high-risk environments compromises life safety systems, risks catastrophic equipment failure, and guarantees severe regulatory penalties. Facility managers and electrical engineers must balance the need for absolute fire survivability in emergency circuits against the demand for heavy-duty mechanical protection in rugged industrial environments. This guide provides a direct, evidence-based technical comparison between mineral insulated cable and armored cable, evaluating both on structural composition, compliance standards, and installation realities to inform precise procurement decisions.
Fire Survivability: Mineral insulated cable utilizes entirely inorganic materials, allowing it to maintain circuit integrity for hours in extreme fire conditions without emitting toxic gases, far exceeding standard fire-resistive organic cables.
Mechanical Durability: Armored cable provides superior defense against crush, impact, and abrasion in harsh industrial or subterranean environments, offering greater flexibility and lower installation complexity than rigid alternatives.
Installation & Labor: Mineral insulated cable requires specialized termination techniques due to its hygroscopic insulation, driving up initial labor costs, whereas armored cable utilizes standard termination practices.
Application Specificity: The choice dictates compliance: MI cable is strictly mandated for critical life-safety and emergency power circuits, while armored cable is the standard for heavy industrial power distribution, data transmission in harsh environments, and hazardous locations requiring physical shielding.
Mineral insulated cable relies on a strictly inorganic architecture designed to eliminate all combustible materials from the electrical pathway. The construction features solid copper conductors embedded within highly compressed magnesium oxide (MgO) powder insulation. This core assembly is encased in a seamless, continuous copper or alloy outer sheath. During the manufacturing process, the entire assembly is drawn through a series of dies. This drawing process compresses the magnesium oxide into a dense, rock-like state, locking the conductors firmly in place while providing exceptional thermal conductivity and dielectric strength.
Engineers developed MI cable specifically to ensure absolute survivability in critical infrastructure. By eliminating organic polymers like PVC or standard cross-linked polyethylene, manufacturers removed the primary fuel source for electrical fires. This prevents insulation degradation under extreme thermal stress. Furthermore, the seamless metallic sheath provides an inherent, continuous ground path. This structural grounding capability eliminates the need for a separate internal grounding conductor in many applications, streamlining the internal geometry of the cable while maximizing fault-current carrying capacity.
The physical characteristics of MI cable make it unique in the field. It feels rigid and heavy compared to standard wiring. Because the magnesium oxide is compacted so tightly, the cable can be flattened or bent without the internal conductors touching each other or the outer sheath. This structural integrity allows it to survive severe physical deformation, provided the outer copper sheath is not breached or sheared.
Armored cable utilizes a layered, multi-material architecture designed to shield internal conductors from severe physical trauma. The core consists of stranded or solid copper conductors wrapped in organic insulation layers. Installers frequently rely on BYJ XLPE insulated copper building wire as the internal conductor assembly due to its excellent electrical properties and baseline thermal resistance. These insulated conductors are bundled together, wrapped in an inner bedding or separator tape, and then encased in a protective metallic covering.
The external armor dictates the cable's specific mechanical application. Flexible interlocked armor, typically found in Metal-Clad (MC) cables, utilizes a spiraled aluminum or steel strip. This design provides high flexibility, making it ideal for dynamic construction sites, commercial retrofits, and complex routing through tight framing. Conversely, Steel Wire Armor (SWA) or Steel Tape Armor (STA) utilizes heavy-gauge galvanized steel. These rigid configurations are strictly mandated for direct burial, heavy mining operations, and environments exposed to severe crush hazards. An optional extruded polymeric outer jacket can be applied over the armor to provide environmental sealing against moisture and corrosive chemicals.
Component | Mineral Insulated (MI) Cable | Armored Cable (MC/SWA) |
|---|---|---|
Conductors | Solid Copper | Stranded or Solid Copper/Aluminum |
Insulation | Compressed Magnesium Oxide (MgO) | XLPE, PVC, or EPR |
Outer Shielding | Seamless Copper or Alloy Sheath | Interlocked Aluminum/Steel, or Steel Wire |
Grounding Method | Continuous Outer Sheath | Internal Ground Wire or Armor (if approved) |
Combustibility | Zero (100% Inorganic) | High to Moderate (Organic components) |
When evaluating extreme temperature performance, mineral insulated cable stands alone. It routinely withstands temperatures exceeding 1000°C (1832°F) for over two hours while maintaining complete electrical continuity. This performance allows MI cable to achieve stringent UL 2196 compliance for two-hour fire-resistive circuits. The testing for this standard is brutal. It involves exposing the energized cable to a furnace that rapidly reaches 1850°F, followed immediately by a high-pressure fire hose stream test to simulate structural collapse and firefighting efforts. Because the magnesium oxide insulation does not melt, burn, or degrade at standard fire temperatures, the cable ensures that emergency fire pumps, smoke extraction fans, and emergency lighting remain operational during catastrophic facility fires.
Standard fire-rated armored cables offer a different protective profile. While the external steel or aluminum armor effectively protects the internal conductors from falling debris and structural collapse during a fire, the internal organic insulation remains vulnerable. Under sustained extreme heat, standard PVC or XLPE insulation will eventually melt, carbonize, and fail, leading to short circuits. In environments where MI cable is over-specified but standard PVC poses an unacceptable fire risk, engineers often specify low smoke halogen-free flame-retardant wire within the armored assembly. This configuration delays flame propagation and minimizes toxic output, though it cannot match the multi-hour circuit integrity of true MI cable.
Armored cables excel in environments characterized by constant physical threats. Steel wire and steel tape armored cables deliver unmatched impact, crush, and shear resistance. They are heavily utilized in high-traffic industrial plants, subterranean mining operations, and heavy construction environments where heavy machinery, forklift traffic, and falling tools pose daily hazards. A direct strike from a backhoe bucket might dent steel wire armor, but it rarely penetrates deep enough to sever the internal conductors. Beyond power conduction, armored cables serve a dual utility. They are frequently deployed to transmit sensitive data and instrumentation signals safely through harsh, interference-heavy industrial zones, as the metallic armor acts as an effective electromagnetic interference (EMI) shield.
Mineral insulated cable, while highly resistant to fire, possesses specific mechanical limitations. The solid copper sheath is durable against direct impact but is highly susceptible to work-hardening. Repeated flexing, continuous machinery vibration, or improper bending during installation can cause the copper sheath to fatigue and fracture. Once the sheath fractures, the internal magnesium oxide is exposed to ambient moisture, leading to rapid insulation failure. Additionally, bare copper MI cable is vulnerable to specific chemical corrosion and galvanic reactions if exposed to damp, acidic masonry or certain industrial chemicals without a protective outer jacket. Armored cables equipped with specialized extruded outer jackets offer superior, long-term resistance to continuous moisture, oils, and industrial solvents.
Life safety compliance in confined spaces hinges on minimizing smoke obscuration and toxic gas emissions during a fire. Mineral insulated cable represents the ultimate zero-smoke, zero-halogen solution. Because its components—copper and magnesium oxide—are entirely inorganic, they physically cannot produce smoke, acidic gases, or toxic off-gassing during combustion. This absolute zero-emission profile ensures clear escape routes for personnel and prevents corrosive damage to sensitive electronic equipment in adjacent server rooms or control centers. When a fire hits an MI cable run, the cable contributes absolutely zero fuel to the event.

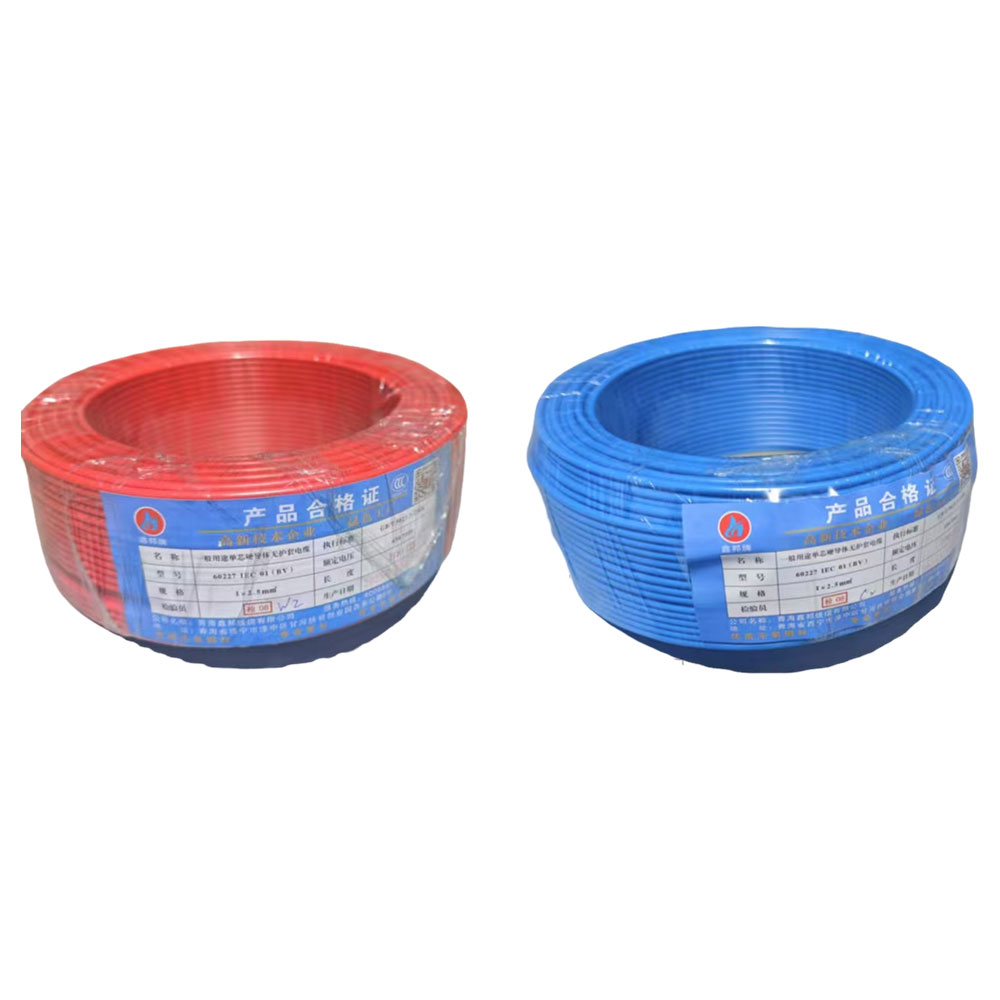

For non-critical circuits that still require strict life safety compliance, organic alternatives must be carefully selected. Integrating WDZ-BYJ halogen-free LSZH building wire within commercial infrastructure significantly minimizes toxic gas release compared to traditional PVC. Standard PVC insulation releases dense black smoke and hydrogen chloride gas when burned. When hydrogen chloride mixes with moisture in the air or in human lungs, it forms hydrochloric acid, which is highly lethal and highly corrosive. LSZH materials are formulated to emit minimal white smoke and zero halogens when exposed to flame. Engineers must frame the trade-off accurately: MI cable provides absolute safety and guaranteed circuit integrity for emergency systems, while LSZH and XLPE-based armored cables offer practical, highly cost-effective risk mitigation for standard commercial and industrial power distribution.
Material Type | Smoke Generation | Halogen Emission | Fire Contribution |
|---|---|---|---|
Mineral Insulated (MgO/Copper) | Zero | Zero | Zero |
LSZH (Low Smoke Zero Halogen) | Very Low (White Smoke) | Zero | Low (Self-extinguishing) |
Standard PVC | High (Dense Black Smoke) | High (Hydrogen Chloride) | Moderate to High |
Standard XLPE | Moderate | Zero | Moderate |
The physical rigidity of mineral insulated cable introduces significant installation challenges. Due to the solid copper sheath and highly compressed internal powder, MI cable has a large minimum bending radius, typically six times the cable diameter. Installers cannot pull it through complex conduit geometries like standard wire. Routing requires specialized bending tools, such as mechanical benders or hickeys, to prevent the copper sheath from kinking. A kink compromises the internal magnesium oxide layer, potentially fracturing the insulation and causing an immediate short circuit between the conductor and the sheath. You must plan MI cable routes meticulously, avoiding sharp corners and tight structural transitions.
Flexible armored cables, particularly interlocked MC cable, provide distinct operational advantages in complex routing scenarios. They easily navigate tight corners, weave through existing structural framing, and adapt to the unpredictable routing requirements of temporary construction sites or historic building retrofits. This flexibility drastically reduces the physical strain on installation crews and eliminates the need for precision bending equipment. You can pull MC cable off a spool and route it directly to the termination point with minimal resistance.
The primary engineering risk associated with MI cable lies in its termination process. Magnesium oxide is highly hygroscopic, meaning it rapidly absorbs moisture from the surrounding air the moment the copper sheath is cut. If left unsealed, this moisture drastically lowers the insulation resistance, rendering the cable useless. Installers face a strict requirement for immediate, highly specialized moisture-seal terminations.
The MI termination process is unforgiving. First, the installer strips back the copper sheath using a specialized stripping tool, exposing the solid conductors and the MgO powder. Next, they must immediately slide a brass screw-on pot over the sheath. If the environment is humid, the installer must use a blowtorch to gently heat the cable starting from a few feet back, driving any absorbed moisture out of the open end. Once dry, the brass pot is filled with a specialized sealing compound or epoxy putty. Finally, an insulating sleeve assembly is crimped into place. The entire assembly must then be tested with a megohmmeter (megger) to verify insulation resistance. If the megger test fails, the installer must cut off the termination and start over.
Armored cable avoids these complexities entirely. It utilizes standardized, rapid termination processes. Electricians use standard hand tools, rotary armor cutters, and standard grounding bushings to terminate MC or SWA cables. The internal organic insulation does not absorb moisture from the air, allowing installers to prep multiple cable ends simultaneously without the risk of immediate insulation failure. You simply cut the armor, insert an anti-short bushing to protect the wires from the jagged metal edge, and secure the cable into a standard junction box connector.
Project timelines and labor budgets are heavily impacted by cable selection. MI cable installation requires highly trained, specialized technicians. The meticulous handling, careful bending, and complex termination procedures significantly increase the man-hours required per foot installed. A standard MI cable termination can take an experienced technician 30 to 45 minutes to complete properly. Any error during termination requires cutting back the cable and starting the sealing process over, further delaying project milestones. You cannot assign apprentice electricians to terminate MI cable without direct, constant supervision.
Armored cable generates substantial labor savings. Although heavy-gauge steel wire armor is physically heavy, the lack of specialized termination requirements accelerates the installation phase. Crews can pull, cut, and terminate armored cable using standard electrical trade skills. A standard MC cable termination takes less than five minutes. This rapid deployment offsets the heavier physical weight, keeping labor overhead manageable even on massive industrial scale projects.
Procurement teams must evaluate cables based on long-term lifecycle value rather than just initial purchase price. Mineral insulated cable carries a premium price point for both raw materials and specialized labor. However, this investment is justified by its indefinite lifespan. Because inorganic magnesium oxide does not suffer from thermal aging, UV degradation, or chemical breakdown over time, MI cable will theoretically last as long as the building itself, provided the moisture seals remain intact. Facilities that install MI cable rarely need to replace it unless the building undergoes a complete structural demolition.
Armored cable serves as the highly scalable solution for bulk power distribution. While it requires a higher initial material investment than non-armored building wire, it eliminates the need for separate, labor-intensive conduit installations. This integrated protection delivers a highly efficient installation process for long runs across industrial facilities. Depending on environmental degradation, UV exposure, and chemical wear, high-quality armored cable provides a predictable, reliable 20- to 30-year operational lifecycle. Once the organic insulation reaches the end of its thermal life, the cable must be pulled and replaced.
Code compliance drives the specification of both cable types. The National Electrical Code (NEC) and International Electrotechnical Commission (IEC) strictly dictate the use of 2-hour fire-rated assemblies, often defaulting to MI cable, for critical life-safety circuits. NEC Article 332 specifically governs the installation of Mineral Insulated cable. Inspectors look for strict adherence to support spacing, bend radii, and approved termination fittings. These critical circuits include fire pump feeders, emergency generator connections, smoke extraction fans, and emergency egress lighting.
Conversely, regulatory standards govern armored cable deployment in physical hazard zones. NEC Article 330 covers Metal-Clad (MC) cable, while other sections dictate requirements for hazardous (Classified) locations where explosive gases or dust may be present. Furthermore, standards require heavy steel wire armor for direct burial applications and industrial data transmission networks exposed to severe mechanical threats. You must match the specific armor type and outer jacket rating to the environmental classification of the installation area.
Historic Building Retrofits: Applications where installing bulky fire-rated conduit is structurally impossible or aesthetically prohibited, but 2-hour fire ratings are legally required by local building codes. MI cable's low profile allows it to be surface-mounted discreetly.
Critical Infrastructure: Nuclear power facilities, petrochemical refineries, and hospital emergency life-safety circuits where absolute circuit integrity during a catastrophic fire is non-negotiable.
High-Temperature Zones: Routing power through blast furnaces, foundries, or industrial kilns where ambient operating temperatures exceed the thermal limits of standard organic insulation.
Heavy Industrial Zones: Manufacturing floors, mining operations, and subterranean power grids requiring continuous defense against physical strikes, heavy machinery, and rodent damage.
Harsh Environment Data Networks: Industrial data transmission and instrumentation networks exposed to harsh environmental elements, where the armor provides both physical protection and EMI shielding.
Commercial Power Distribution: Standard commercial power distribution where routing flexibility, rapid installation, and mechanical protection outweigh the need for extreme fire survivability.
Mineral insulated cable is an irreplaceable, highly specialized asset for extreme fire survivability and critical circuit integrity, whereas armored cable is the versatile workhorse for mechanical protection and data transmission in harsh environments. Base procurement decisions strictly on regulatory requirements for fire ratings—defaulting to MI cable for life safety—versus the environmental threat of physical damage, where armored cable excels.
To ensure optimal deployment, take the following next steps:
Audit your facility's compliance requirements to identify all emergency systems legally mandated to maintain a 2-hour fire rating.
Assess the physical and environmental hazards along proposed cable routes, noting areas with high vibration, moisture, or heavy machinery traffic.
Consult with certified electrical engineers to evaluate the lifecycle value of raw materials versus the specialized installation labor required for your specific site conditions.
Standardize termination training for your maintenance crews based on the specific cable architecture selected to prevent long-term insulation failures.
A: Generally, no. The NEC and UL require fire pump circuits to maintain a strict 2-hour fire rating to ensure water pressure during an emergency. Standard armored cable utilizes organic insulation that melts under extreme heat, failing this requirement. Unless the armored cable is encased in a specifically engineered, tested, and approved 2-hour fire-resistive assembly, MI cable remains the standard mandate.
A: The difficulty stems from its insulation material. Magnesium oxide powder is highly hygroscopic, meaning it aggressively absorbs moisture from the air the moment the copper sheath is cut. If not immediately and properly sealed using specialized brass glands and epoxy putty, the absorbed moisture will destroy the cable's insulation resistance, causing a short circuit.
A: No. Mineral insulated cable is approved by electrical codes for exposed runs without the need for additional conduit. Its seamless, continuous copper or alloy metallic sheath provides inherent mechanical protection and acts as a fully compliant, continuous equipment grounding conductor.
A: LSZH cable uses organic polymer insulation formulated to emit minimal smoke and no toxic halogens when burned, but it will eventually melt and fail in a fire. Mineral insulated cable is completely inorganic. It physically cannot burn, smoke, or emit gases, offering absolute zero-emission fire survival.
A: Armored cable features a robust, protective metallic covering wrapped around its internal conductors to defend against severe physical damage in harsh environments. Non-armored cable lacks this metallic shield and must either be installed inside protective conduit or restricted to light-duty, concealed applications.
A: The metallic armor itself is not waterproof and allows moisture to pass through its interlocking gaps or wire strands. However, armored cables can be made highly water-resistant by applying a specialized extruded polymer outer jacket over the armor, making them suitable for wet locations and direct burial.
A: Inorganic MI cable does not degrade over time. If the moisture seals remain intact and it avoids physical fatigue, it offers an indefinite lifespan. Organic XLPE insulated armored cable has a finite lifespan, typically 20 to 30 years, as the polymers eventually degrade due to thermal aging, UV exposure, and environmental wear.
