5000M
1
70/10 95/15 100/17 120/25 150/35 185/45 240/40 300/50 400/50 etc...
| Quantity: | |
|---|---|
As a premier manufacturer and direct factory supplier of overhead power transmission solutions, we engineer high-capacity bare conductors designed for rigorous grid infrastructures. This ASTM-compliant aluminum conductor steel reinforced cable ensures optimal electrical delivery across vast, challenging terrains.
Configuration: Single core, precision-stranded Aluminum & Steel
Voltage Range: Seamlessly supports 10kV distribution up to 500kV+ EHV networks
Minimum Order Quantity: 5000 Meters
Core Applications: Engineered for long spans, heavy ice zones, and mountainous topographies

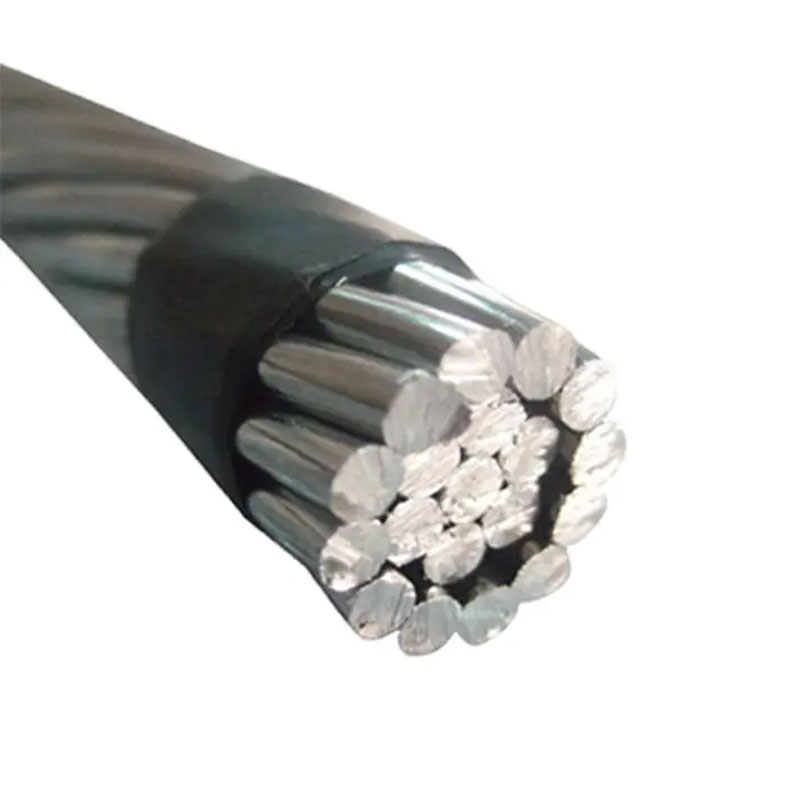

The ASTM Standard ACSR Bare Conductor represents the pinnacle of overhead transmission engineering, meticulously crafted to balance exceptional electrical conductivity with unyielding mechanical support. When examining the cross-section, the precise concentric lay of the gleaming, cold-drawn aluminum strands tightly gripping the robust, galvanized steel core is immediately apparent. This tightly wound construction not only feels incredibly solid to the touch but also presents a smooth, uniform metallic exterior that actively minimizes corona discharge and aerodynamic drag in high-wind environments. The distinct, bright sheen of the high-purity aluminum wire speaks to its refined metallurgy, ensuring minimal electrical resistance over vast distances. Engineered specifically for complex grid expansions, this conductor effortlessly spans wide rivers and deep valleys, absorbing immense physical tension without yielding or stretching out of specification. By integrating this advanced cabling solution into your infrastructure, project managers can drastically reduce the required number of support towers, ultimately streamlining the installation timeline and cutting down on foundational construction expenses. Its rugged architecture is purpose-built to withstand the harshest environmental elements, from heavy radial ice loading in freezing climates to intense UV exposure and thermal stress, ensuring uninterrupted power flow and absolute grid stability for decades to come.
Our ACSR bare conductors are meticulously engineered to solve the most demanding challenges in modern overhead power distribution. By combining advanced metallurgical processes with precise stranding techniques, these cables deliver unparalleled performance, ensuring your power grids remain resilient, efficient, and highly dependable under extreme operational stresses.
Optimized Weight-to-Strength Ratio: The integration of a high-tensile steel core allows the lightweight aluminum outer strands to span significantly longer distances without sagging, directly reducing the need for frequent support structures.
Superior Current Carrying Capacity: Utilizing high-purity aluminum ensures maximum electron flow, drastically lowering line losses and improving the overall thermal rating of your transmission network.
Exceptional Weather Resilience: The tightly compacted outer layers prevent moisture ingress, while the specialized coating on the inner steel core effectively combats oxidative degradation in highly corrosive environments.
Vibration Fatigue Resistance: The concentric stranding pattern naturally dampens aeolian vibrations caused by crosswinds, protecting the structural integrity of the cable and extending the lifespan of the mounting hardware.
Executing large-scale electrical infrastructure projects requires absolute certainty in regulatory adherence. As a dedicated manufacturer, we ensure every meter of our bare conductor strictly aligns with the most rigorous international frameworks. This unwavering commitment to compliance guarantees seamless grid integration, rapid engineering approvals, and worry-free project sign-offs.
ASTM Precision: Fully compliant with ASTM B230, B232, and B498 specifications, ensuring exact dimensional tolerances and metallurgical purity.
Global Interoperability: Engineered to meet parallel international benchmarks including IEC, BS, and DIN standards, making it universally adaptable for cross-border energy projects.
Authoritative Certifications: Backed by comprehensive TUV, CE, and ISO certifications, providing documented proof of safety, reliability, and manufacturing excellence.
Grid-Ready Assurance: Pre-qualified for immediate deployment in municipal and national power grids, eliminating bureaucratic delays during the procurement and inspection phases.
The longevity of an overhead transmission line is heavily dictated by its resistance to environmental degradation. We source only the finest raw materials, combining highly conductive aluminum with heavily fortified steel. This dual-metal synergy provides a tactile, robust finish that withstands the harshest atmospheric conditions, from salty coastal breezes to acidic industrial smog.
High-Purity 1350-H19 Aluminum: Delivers exceptional electrical conductivity, presenting a bright, smooth finish that minimizes surface anomalies and corona losses.
Advanced Galvanization Options: Available with Class A, B, or C zinc coatings on the steel core, providing a sacrificial barrier that drastically slows down oxidative rust.
Mischmetal Alloy Coating: For extreme environments, we offer a specialized Zinc-5% Aluminum-Mischmetal alloy coating, extending the core's lifespan far beyond traditional galvanization.
Protective Grease Application: Optional anti-corrosive grease can be applied to the inner steel strands during the stranding process, sealing out moisture and industrial pollutants effectively.
Optimizing the thermal dynamics of a power grid is critical for maintaining efficiency and preventing catastrophic failures during peak load times. Our conductors are designed from an engineering perspective to maximize ampacity while maintaining structural stability. The cool, metallic surface efficiently dissipates heat, allowing the line to operate safely even under intense solar radiation and heavy electrical loads.
High Continuous Current Rating: Engineered to carry massive electrical loads continuously without exceeding the standard maximum operating temperature of 75°C.
Low Line Loss Profile: The exceptional conductivity of the carefully drawn aluminum strands minimizes resistive heating, directly translating to lower operational costs and energy waste.
Stable Thermal Elongation: The central steel core maintains its dimensional stability at elevated temperatures, preventing dangerous sag increases during summer peaks or emergency overload scenarios.
Optimized Heat Dissipation: The geometric arrangement of the outer strands maximizes the surface area exposed to ambient air, enhancing convective cooling in varying wind speeds.
Conquering difficult topographies requires a cable that refuses to stretch or snap under immense pressure. The mechanical architecture of our ACSR conductor provides a rigid, unyielding backbone for your transmission network. This high tensile strength allows infrastructure planners to push the boundaries of span lengths, significantly altering the economics of line construction.
Exceptional Tensile Strength: The high-carbon steel core absorbs the vast majority of the longitudinal tension, protecting the softer aluminum strands from mechanical fatigue.
Extended Span Support: Capable of crossing wide rivers, deep mountain valleys, and expansive plains without requiring intermediate support structures.
Infrastructure Cost Reduction: By enabling longer distances between towers, project managers can drastically reduce the number of pylons, insulators, and foundational concrete required.
Superior Sag-Tension Dynamics: Maintains a tight, predictable arc even when burdened by heavy radial ice accumulation or subjected to violent, high-velocity crosswinds.
No two electrical grids are identical, which is why flexibility in manufacturing is paramount. As a direct supplier, we understand the nuanced requirements of different regional markets and engineering blueprints. Whether you require standard North American nomenclature or a highly specific metallurgical ratio, our production lines are calibrated to deliver exact matches.
Standard Bird Name Recognition: Full support for industry-standard sizing conventions, allowing quick and accurate procurement of specifications like Raven, Drake, or Falcon.
Variable Stranding Ratios: Custom aluminum-to-steel configurations (such as 6/1, 26/7, or 54/19) available to perfectly balance electrical conductivity with mechanical pulling force.
Tailored Cross-Sections: Production capabilities spanning from compact 70/10 mm² distribution lines up to massive 630/45 mm² extra-high-voltage transmission cables.
Application-Specific Engineering: Collaborative design adjustments to meet unique environmental challenges, ensuring the final product aligns perfectly with your specific topographical and electrical demands.
The integrity of a conductor must be preserved from the factory floor to the installation site. We treat the logistics of heavy cable transportation with the utmost seriousness, employing robust packaging solutions that protect the smooth aluminum exterior from abrasions and impact damage. Our streamlined supply chain ensures your materials arrive precisely when the installation crews need them.
Heavy-Duty Drum Packaging: Spooled onto reinforced export-grade wooden or steel-wooden drums, ensuring the cable remains perfectly coiled and protected against transit shocks.
Precision Cut-to-Length Services: We supply exact continuous lengths based on your span requirements, drastically reducing on-site splicing labor and minimizing expensive material waste.
Moisture-Sealed Protection: Drum edges and cable ends are securely capped and wrapped in weather-resistant materials to prevent moisture ingress during oceanic freight or outdoor storage.
High-Volume Fulfillment: Leveraging expansive manufacturing facilities and deep raw material reserves to guarantee rapid turnaround times, even for massive infrastructure orders exceeding our 5000-meter minimum.
Trust in a power conductor is built upon the rigorous testing it undergoes before it ever sees the sky. Our state-of-the-art manufacturing facility operates under a philosophy of zero defects. From the initial drawing of the raw aluminum rod to the final stranding of the steel core, every millimeter is subjected to relentless scrutiny in our proprietary testing laboratories.
End-to-End Traceability: Every batch of raw aluminum and galvanized steel is barcoded and tracked, ensuring complete metallurgical accountability throughout the production lifecycle.
In-House Laboratory Testing: Comprehensive electrical resistance, tensile strength, and elongation tests are performed on-site to verify that every reel exceeds ASTM requirements before shipment.
Automated Stranding Precision: Utilizing computer-controlled stranding machines to guarantee perfectly uniform tension and concentricity, eliminating the risk of bird-caging or loose wires.
Decades of Export Excellence: Drawing upon extensive experience in supplying international energy projects, we deliver high-performance, maintenance-free solutions designed to operate flawlessly for over 25 years.
Selecting the right manufacturing partner is just as critical as selecting the right cable specification. We stand as a pillar of reliability in the global electrical infrastructure sector, committed to empowering your projects with superior materials and unmatched technical support. Our dedication to engineering excellence ensures that every product we deliver enhances the safety, efficiency, and profitability of your operations.
Direct Manufacturer Economics: By eliminating intermediaries, we provide highly competitive pricing structures without compromising on the metallurgical quality or structural integrity of the conductors.
Uncompromising Quality Assurance: Our rigorous, multi-stage inspection protocols guarantee that every spool meets stringent international standards, drastically reducing the risk of post-installation failures.
Dedicated Technical Consultation: Our team of seasoned electrical engineers is available to assist with complex load calculations, sag-tension analysis, and optimal material selection for your specific terrain.
Global Logistics Expertise: We possess the logistical acumen to navigate complex international shipping routes, ensuring your heavy-duty cables arrive safely and strictly on schedule.
